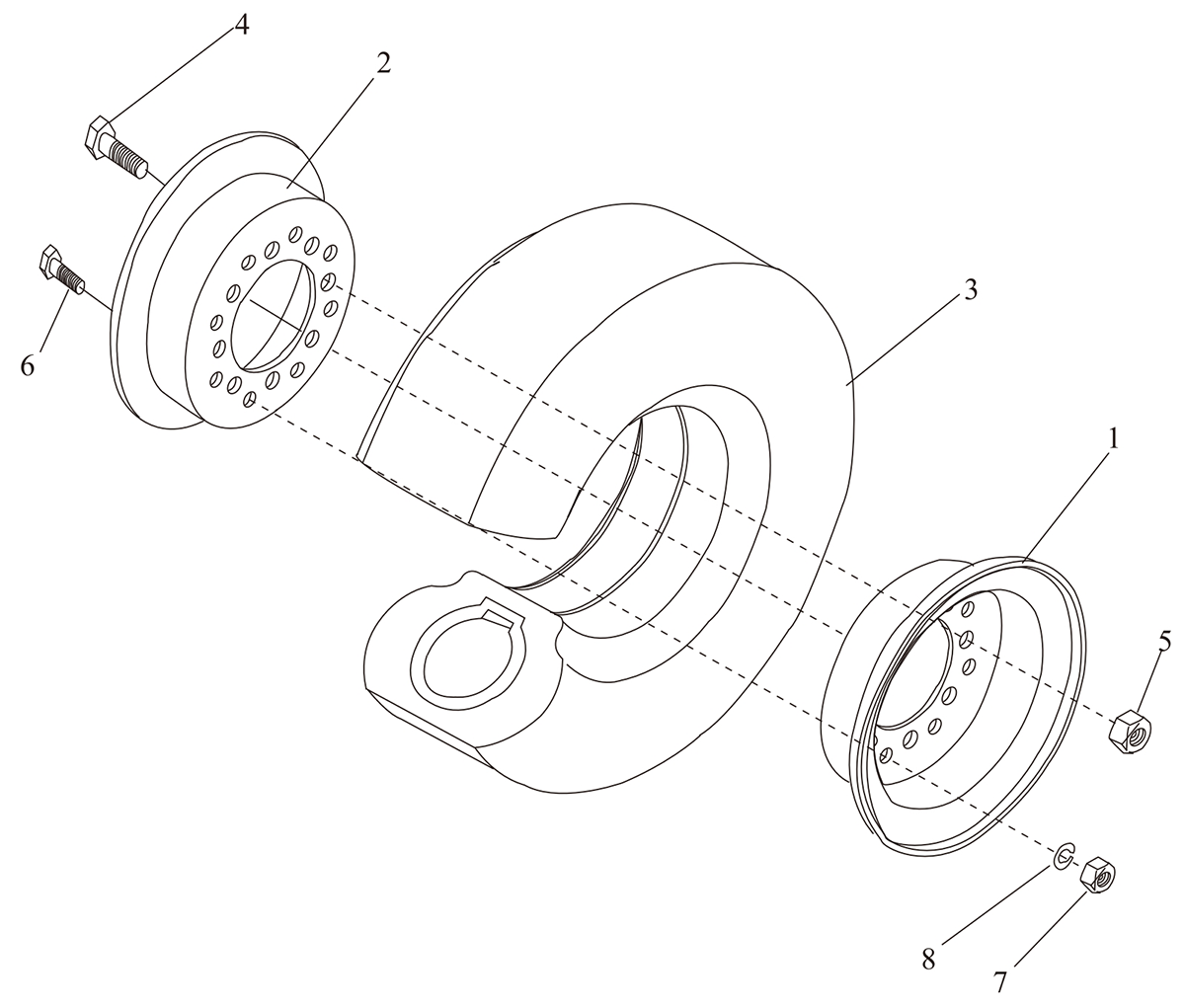

1

GB/T2982

28 X 9-15-12PR Tyre

-

GB/T10823

28 X 9-15 Tyre

2

A30A5-01000

7.00-15 Whell Rim ass'y

3

A30A5-02100

Drive axle ass'y

4

A35DB5-00100

Gearbox ass'y

5

GB/T5785

M12 X 1.25 X 40 Bolt

6

GB/T93

12 Washer, lock

7

GB/T97.1

12 Washer

8

GB/T889.2

M16 X 1.5 Nut

9

GB/T97.l

16 Washer

10

GB/T5785

M16 X 1.5 X 75 Bolt

11

GB/T96

16 Washer

12

GB/T5786

M14 X 1.5 X 60 Bolt

13

GB/T93

Washer, lock

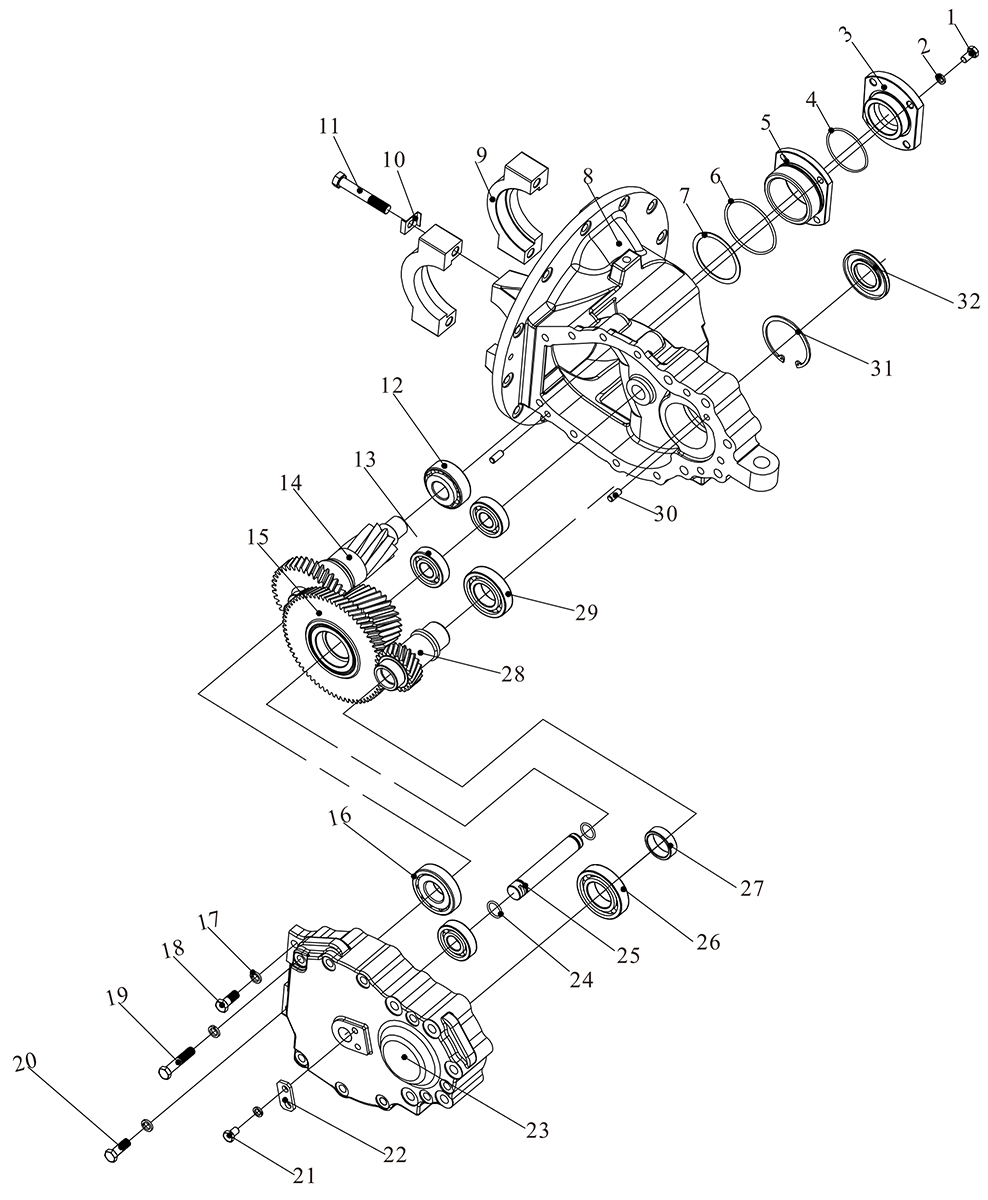

1

GB/T5783

M10 X 40 Bolt

4

2

GB/T93

10 Washer, lock

6

3

A35DB5-00101

II Cap

l

4

GB/T3452.l

73 X 2.65 O-ring

1

5

A35DB5-00102

l Cap

1

6

GB/T3452.l

85 X 2.65 O-ring

1

7

A35DB5-00103

Shim

8

A35DB5-00110

Case

1

9

A35DB5-00104

Bearing

2

10

A35DB5-00105

Bearing lock plate

4

11

A35DB5-00106

Bolt

4

12

GB/T 297

32306 Bearing

l

13

GB/T276

6305 Bearing

3

14

A35DB5-00107

Shaft, pinion

1

15

A35DB5-00108

Gear

1

16

GB/T 297

30307 Bearing

1

17

GB/T 93

12 Spring gasket

11

18

GB/T 5786

M12 X 1.25 X 30

l

19

GB/T 5785

M12 X 1.25 X 100

9

20

GB/T 5786

M12 X 1.25 X 40

l

21

GB/T 5783

M10 X 16

2

22

A35DB5-00109

Stopper

1

23

A35DB5-00111

Cap

1

24

GB/T1235

25 X 2.4 O-ring

2

25

A35DB5-00112

Axle

1

26

GB/T276

6209 Bearing

1

27

A35DB5-00113

Seal cover

1

28

A35DB5-00114

Shaft

1

29

GB/T276

6208 Bearing

1

30

GB/T119.1

A10 X 22 Pin

2

31

GB/T 893.1

80 Internal Circlips

1

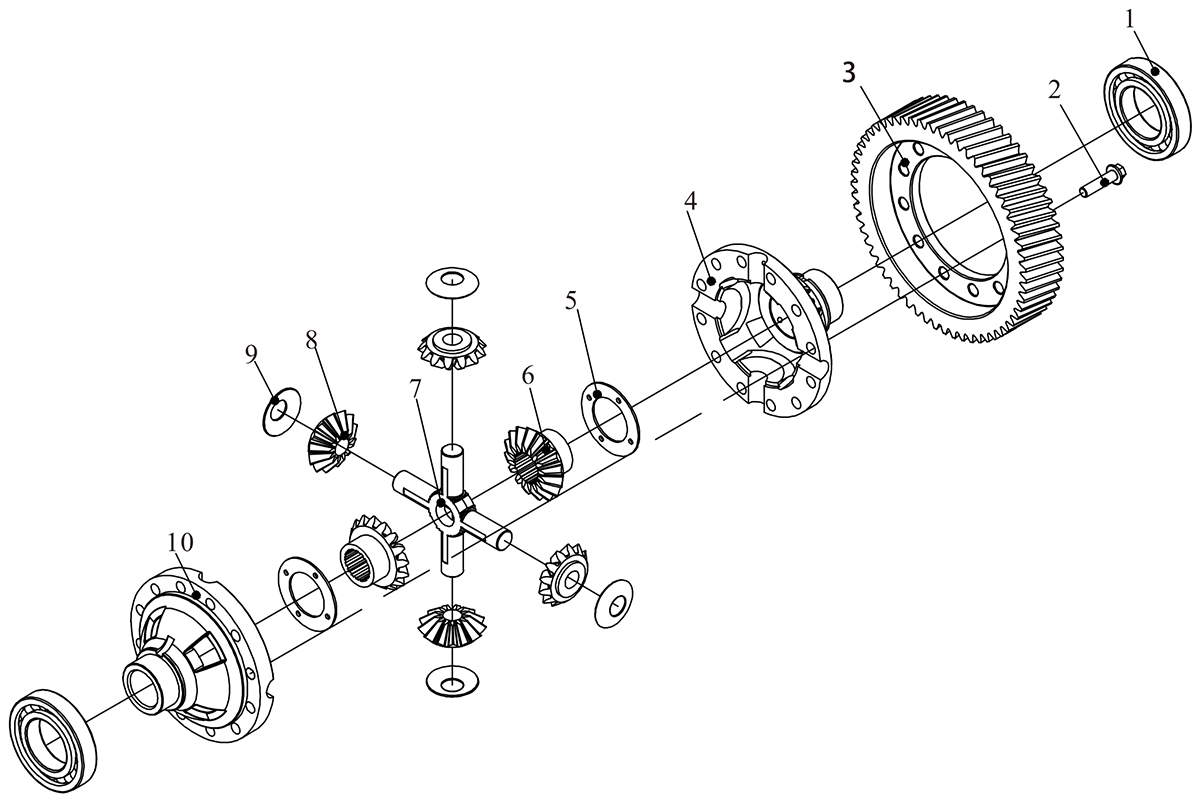

1

GB/T276

6213 Bearing

2

2

GB/T16674.2

M14 X 1.5 X 60 Bolt

12

3

A35DB5-00116

Gear ring

1

4

A35DB5-00120R

Case, differential R

1

5

A35DB5-00117

Shim

2

6

A35DB5-00118

Gear,side

2

7

A35DB5-00119

Cross axle

1

8

A35DB5-00121

Planet gear

4

9

A35DB5-00122

Shim

4

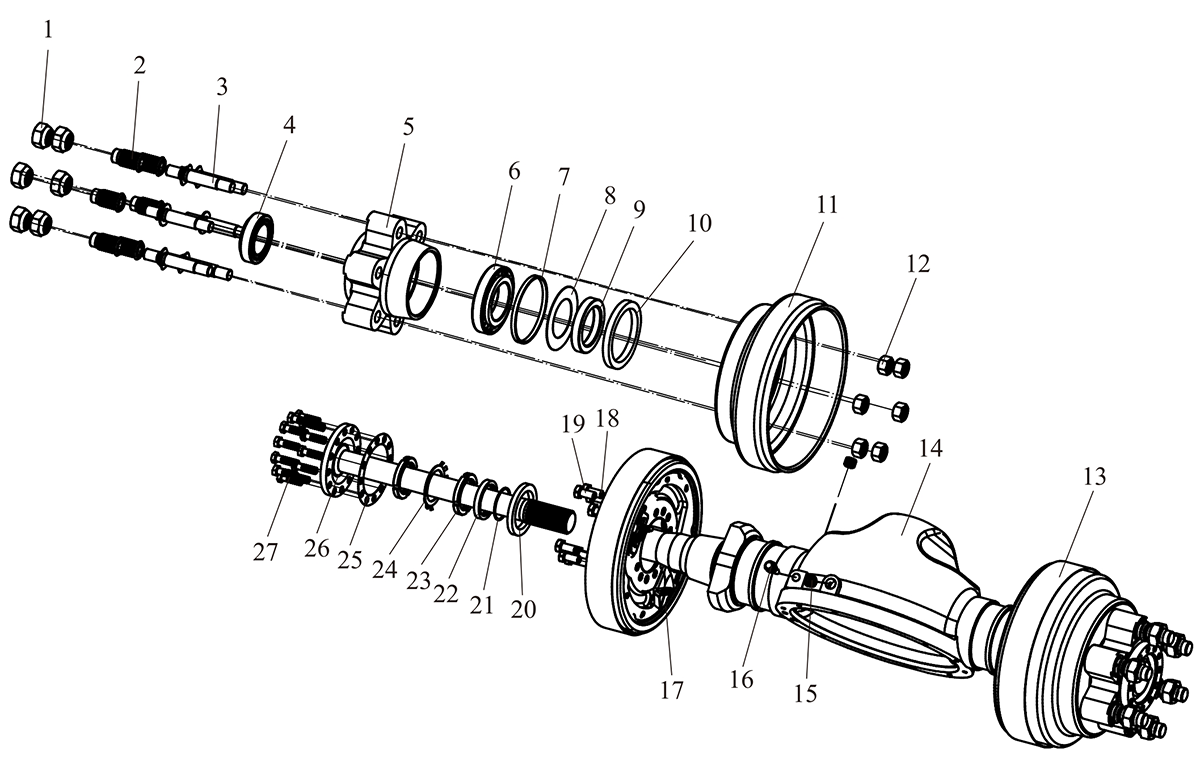

1

A30A5-02109

Nut

12

-

A30A5-03002

Nut

12

2

A2515-00103

Nut

12

3

A30A5-02108

Bolt

12

4

GB/T297

33012 Bearing

2

5

A30A5-02102

Hub, front

2

6

GB/T297

30214 Bearing

2

7

A30A5-02120

125 X 119 X 7.5 Washer

2

8

A30A5-02119

111 X 72.5 X 1 Retainer

2

9

A30A5-02111

100 X 72 X 16 Retainer, oil seal

2

10

GB/T9877.1

Sd100 X 125 X 12 Seal, oil

2

11

A30A5-02101

Drum, brake

2

12

GB/T6171

M20 X 1. 5 Nut

12

13

A30A5-02800L

Left brake

1

14

A30A5-02112

Housing, axle

1

-

A30A5-03004

Housing, axle

1

15

A30A5-02114

Plug

3

16

A30A5-02113

Breather, air

1

17

A30A5-02800R

Right brake

1

18

A30A5-02116

M14 X 1.5 X 38 Bolt

4

19

A30A5-02115

M14 X 1.5 X 30 Bolt M

12

20

GB/T9877.1

75 X l00 X 10 Seal, oil

2

21

GB/T3452.1

59 X 2.4 O-ring

2

22

A20A5-02113

Bushing

2

23

GB/T810

M58 X 2 Nut

4

24

GB/T858

58 Washer

2

25

A30A5-02105

Packing

2

26

A20A5-02106

Shaft, drive

2

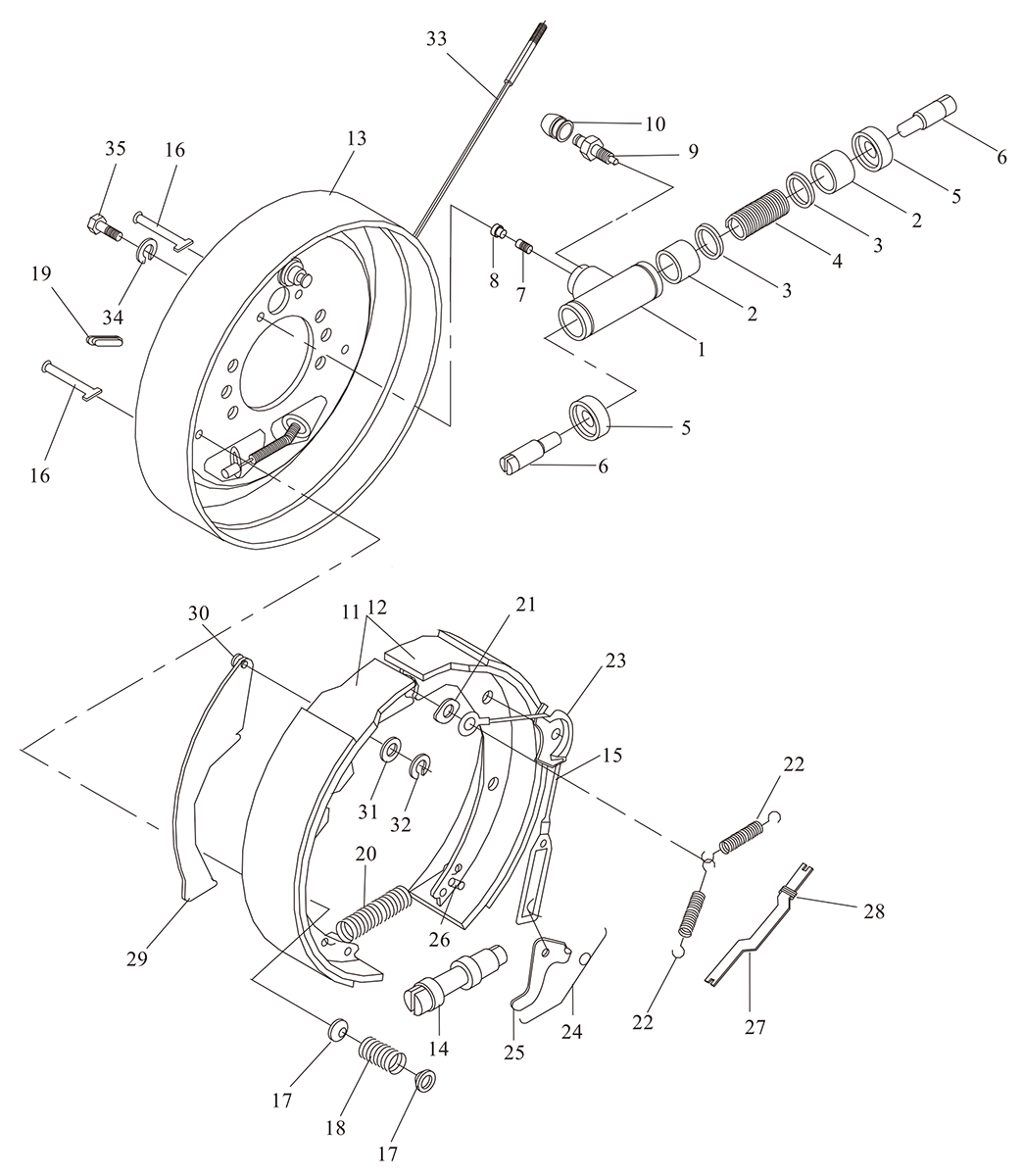

A

A30A5-02800(L)

Wheel brake ass'y L.H.

1

A30A5-02800(R)

Wheel brake ass'y R.H.

1

B

A30A5-02900

Wheel cylinder ass'y

1

1

A30A5-02901

Cylinder

1

2

A30A5-02902

Piston

2

3

A30A5-02903

Cup, piston

2

4

A30A5-02904

Spring

1

5

A30A5-02905

Cover, dust

2

6

A30A5-02906

Rod, piston

2

7

A30A5-02907

Seat, tube

1

8

A30A5-02908

Shroud

1

9

A30A5-02909

Screw, bleeder

1

10

A30A5-029 l 0

Cap, screw

1

11

A30A5-029 l 1

Pin, shoe & lining ass'y

1

12

A30A5-02912

Pin, shoe & lining ass'y

1

13

A30A5-02913

Back plate ass'y

1

14

A30A5-02914

Clearance adjuster

1

15

A30A5-02915

Spring & Fitting ass'y

1

16

A30A5-02916

Pin, shoe hold down

2

17

A30A5-02917

Cup, shoe hold down

4

18

A30A5-02918

Spring, shoe hold down

2

19

A30A5-02919

Plug, rubber

1

20

A30A5-02920

Spring return

1

21

A30A5-02921

Guide, plate

1

22

A30A5-02922

Return spring, brake shoe

2

23

A30A5-02923

Guide, cable

1

24

A30A5-02924

Spring

1

25

A30A5-02925

Lever

1

26

A30A5-02926

Pin

1

27

A30A5-02927

Strut L. H.

1

28

A30A5-02928

Spring

1

29

A30A5-02929

Lever L.H. brake

1

30

A30A5-02930

Pin

1

31

A30A5-02931

Washer, spring

1

32

A30A5-02932

Snap, ring, pin axle

1

33

A30A5-02933

Cable L. H

1

A30A5-02934

Cable R. H

1

34

GB/T93

Washer,lock

2

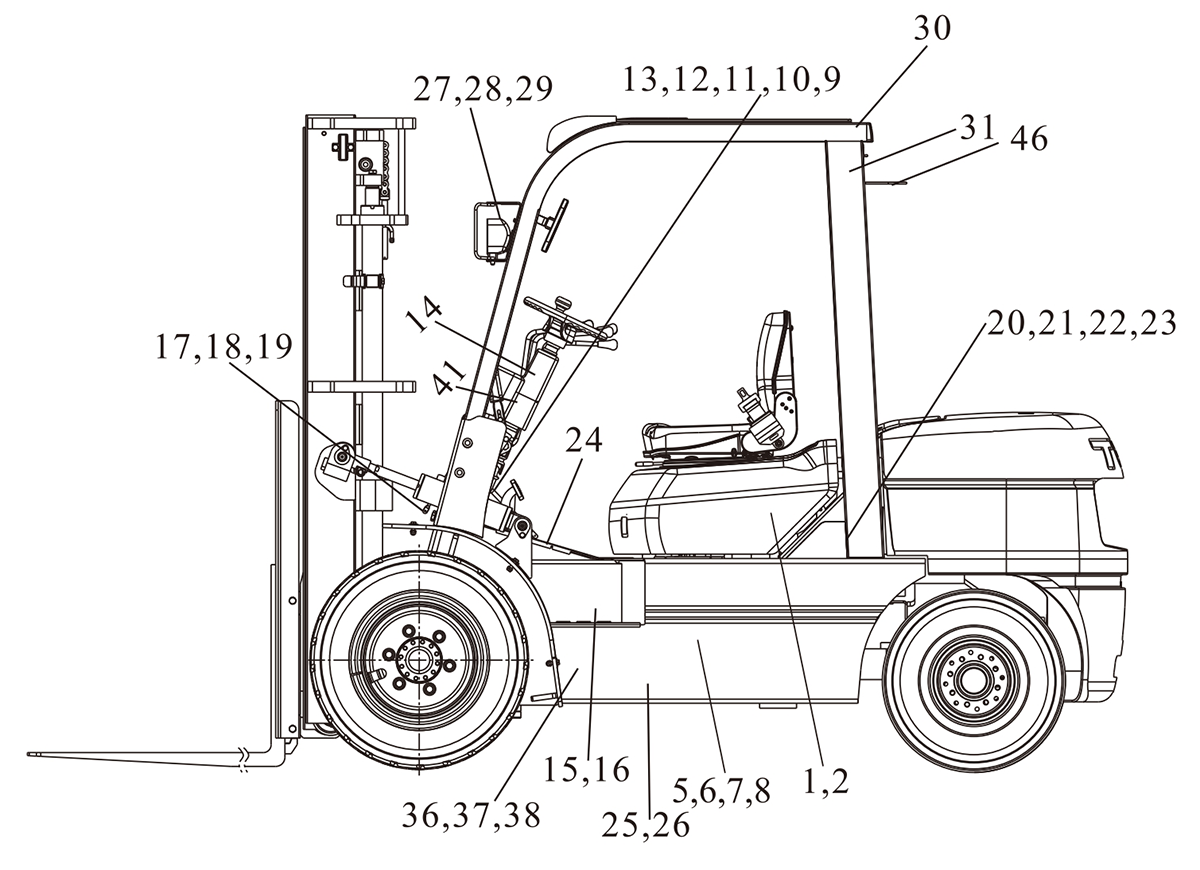

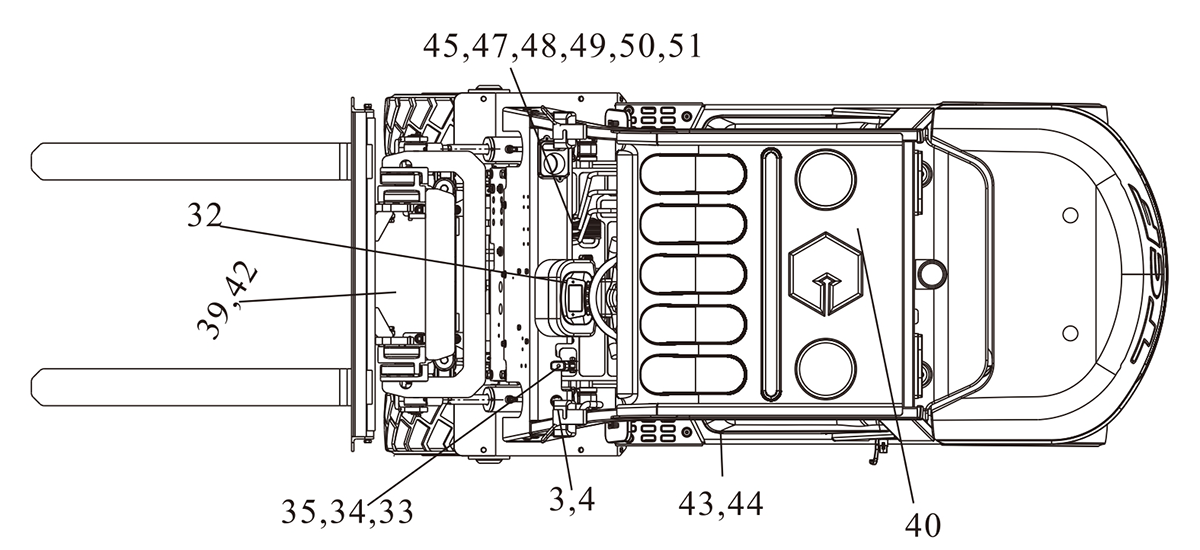

1

Al5AL2-90300

Charger

1

-

A15AL2-90300-1

Charger

1

-

Al5AL2-90200

Charger

1

-

A15AL2-90200-1

Charger

1

-

A25AL2-90300

Charger

1

-

A25AL2-90300-1

Charger

1

-

A35AL2-90300

Charger

1

-

A35AL2-90300-1

Charger

1

2

A35DC2-20100

Battery

1

-

A35DC2-20300

Battery

1

-

A35DC2-20400

Battery

1

3

T25B2-60 100

Emergency switch

1

4

Al5R2-60501

Emergency switch sign

1

5

A35DC2-10100

Controller unit

1

-

A35DD2-10100

Controller unit

1

6

GB/T 5783

Ml0 X 30 Bolt

4

7

GB/T97.l

10 Washer

4

8

GB/T93

10 Washer, lock

4

9

Al5T2-60200

Accelerator

1

-

A35DD2-60100

Accelerator

1

10

GB/T 5783

M18 X 25 Bolt

2

11

GB/T 97.1

8 Washer

2

12

GB/T93

8 Washer, lock

2

13

GB/T 6170

M8 Nut

2

14

A80A2-60100

Combination switch

1

15

A35M2-10300

DC isolation converter

1

16

GB/T823

M5 X 12 Screw

7

17

DT09G-DL224ED

Horn

1

18

GB/T 5783

M18 X 16 Bolt

1

19

A15T2-60300

Horn filter

1

20

A50C2-60400

Back buzzer

1

21

GB/T 5783

M6 X 16 Bolt

1

22

GB/T97.1

6 Washer

1

23

GB/T 93

6 Washer,lock

1

24

DT05G-JK205A

Stop lamp switch

1

25

A25BL2-60 100

Fan

2

26

A25BL2-60200

Fan retainer

2

27

A30C2-40200

Headlamps

2

28

A30C2-40600

Double front small lights

2

29

A30AD2-80900

Overhead guard harness

1

27,28,29

A30DA2-40100

Front combination light

2

30

Tl 60A2-40800

Three color tail lights

2

31

A35K2-81000

Taillight tieline

1

32

A35DC2-70100

Meter ass'y

1

A35DD2-70100

Meter ass'y

1

33

A15R2-60300

Hand Brake switch

1

34

8CC15-04020

M4 X 20

2

35

180

Strapping

20

36

Al5G2-00210

Fuse box

1

37

DT09G-SG253

Flasher unit

1

38

Tl 60A2-80800

Five core relay

2

39

A25AT2-30100

Traction motor

1

40

A25AL2-30200

Lift motor

1

41

A60A2-60100

Key switch

1

42

A35DC2-80500

Connecting cables

1

43

A35DC2-80600

Connecting cables

1

44

A35DC2-80900

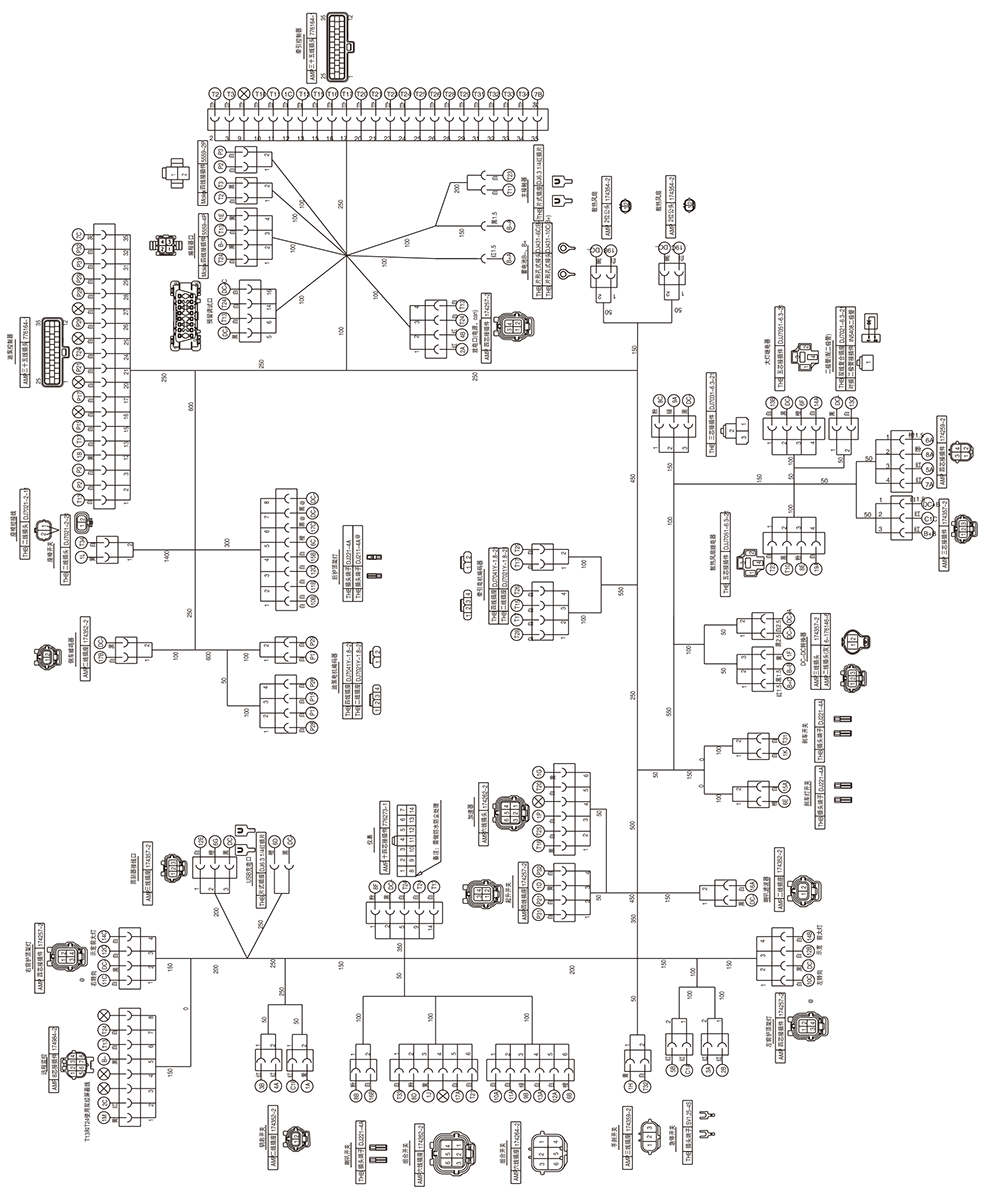

Vehicle wiring harness

1

-

A35DD2-80100

Vehicle wiring harness

1

45

A25AU2-60201

Tieline

1

46

DT04G-LTD152

Warning light

1

47

A25U2-60100

Lifting switch

1

-

A25U2-60200

Lifting switch

1

-

A25U2-60300

Lifting switch

1

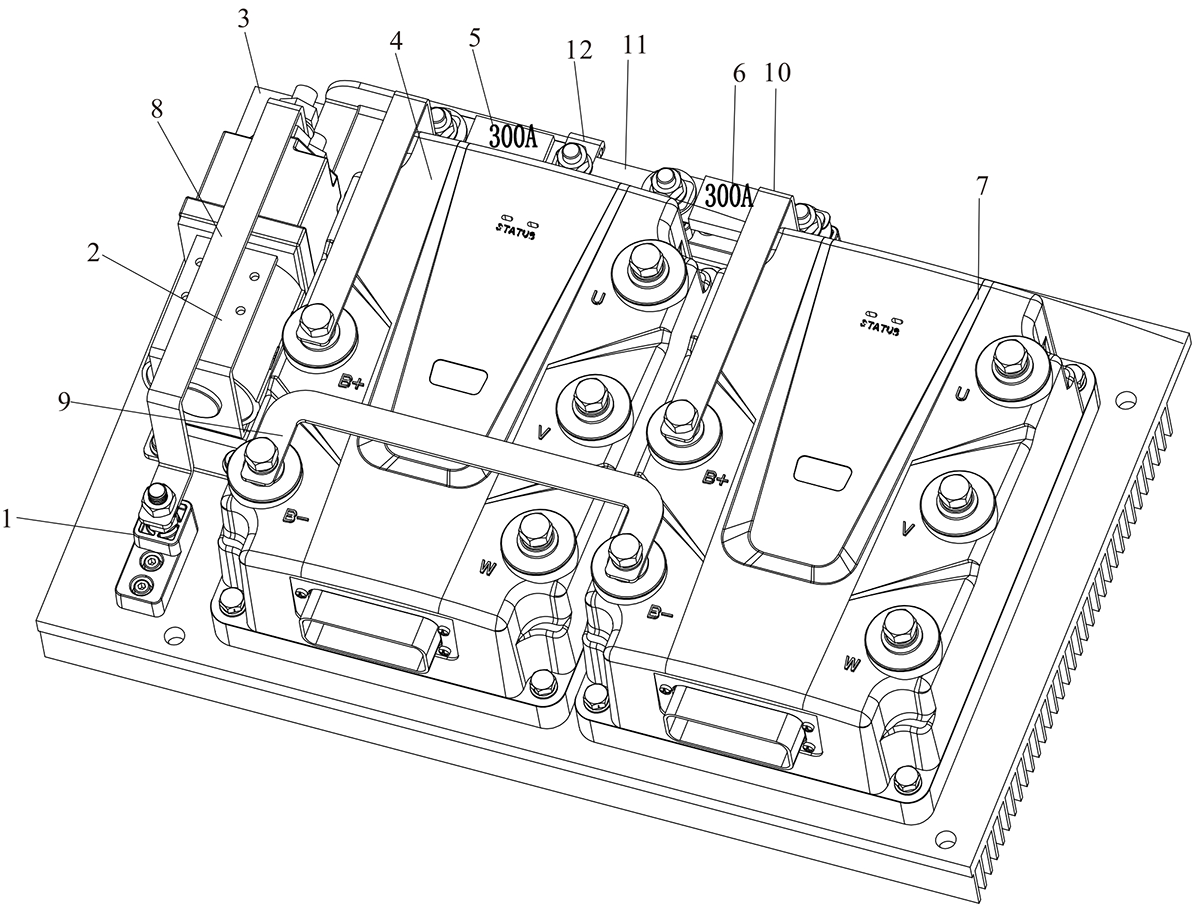

A

A35DC2-10100 -

Controller ass'y

1

1

A35DC2-10101

Positive terminal

1

2

A35DC2-10102

Contactor

1

3

A35DC2-10103

Floor

1

4

A35DC2-10104

Traction controller

1

5

A35DC2-10105

300A Fuse

1

6

A35DC2-10105

300A Fuse

1

7

A35DC2-10106

Pump controller

1

8

A35DC2-10107

Copper platoon

1

9

A35DC2-10108

Copper platoon

1

10

A35DC2-10109

Copper platoon

2

11

A35DC2-10110

Copper platoon

1

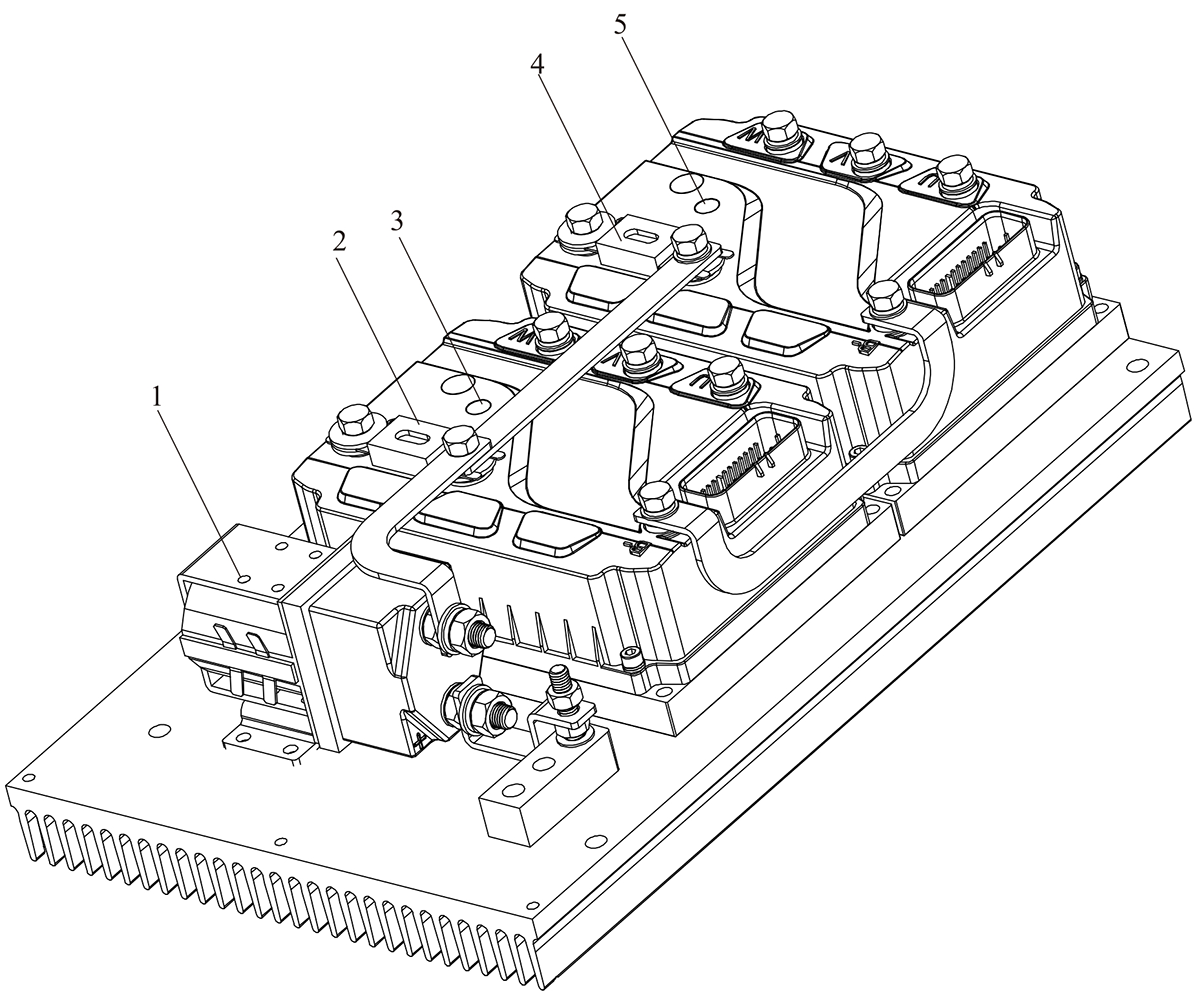

A

A35DD2-10100

Controller ass'y

1

1

A35DD2-10101

Contactor

1

2

A35DD2-10102

250A Oil pump fuse

1

3

A35DD2-10103

Oil pump controller

1

4

A35DD2-10104

300A Traction fuse

1

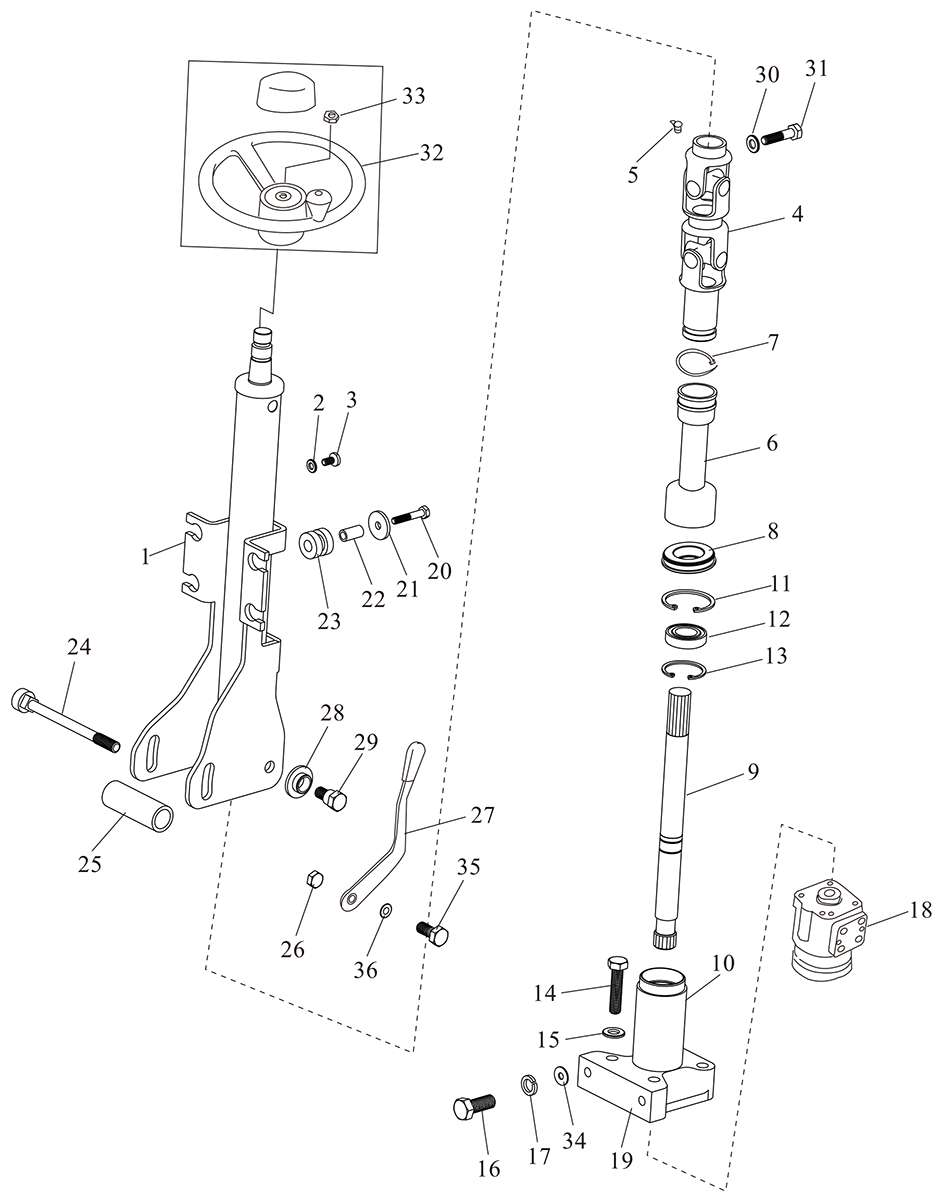

1

F30B6-00100

Steering column

1

2

GB/T97.l

6 Washer

4

3

GB/T818

M6 X 12 Screw

4

4

A30C6-00200

Joint

1

5

JB/T7940.l

M10x1 Cup,grease

1

6

A30C6-00003

Boot

1

7

ZD4 X 150 Band

1

8

A30C6-00004

Seal cover

1

9

A30C6-00301

Link

1

10

A30C6-00302

Flange

1

11

GB/T893.1

Snap ring

1

12

GB/T276

Bearing

1

13

GB/T894.l

Snap ring

2

14

GB/T5783

M10 x 45 Bolt

4

15

GB/T93

10 Washer, lock

4

16

GB/T5786

M12 X 1.25 X 20 Bolt

2

17

GB/T93

12 Washer,lock

2

18

A25A4-40000

Redirector

1

19

A30A6-00006

Shim

1

20

GB/T5783

M6 X 35 Bolt

4

21

A30A6-00007

Washer

4

22

A30A6-00008

Spacer

4

23

A30A6-00009

Rubber

4

24

A30B6-00001

Bolt

1

25

A30C6-00002

Spacer

1

26

A30B6-00002

Nut

1

27

A30B6-00101

Lever

1

28

A30A6-00004

Washer

2

29

A30A6-00005

Bolt

2

30

GB/T93

8 Washer,lock

1

31

GB/T5783

1

32

A15A6-00200

Wheel, Steering ass'y

1

33

GB/T6173

M16 X 1.5 Nut

1

34

GB/T97.l

12 Washer

1

35

A30B6-00004

Bolt

1

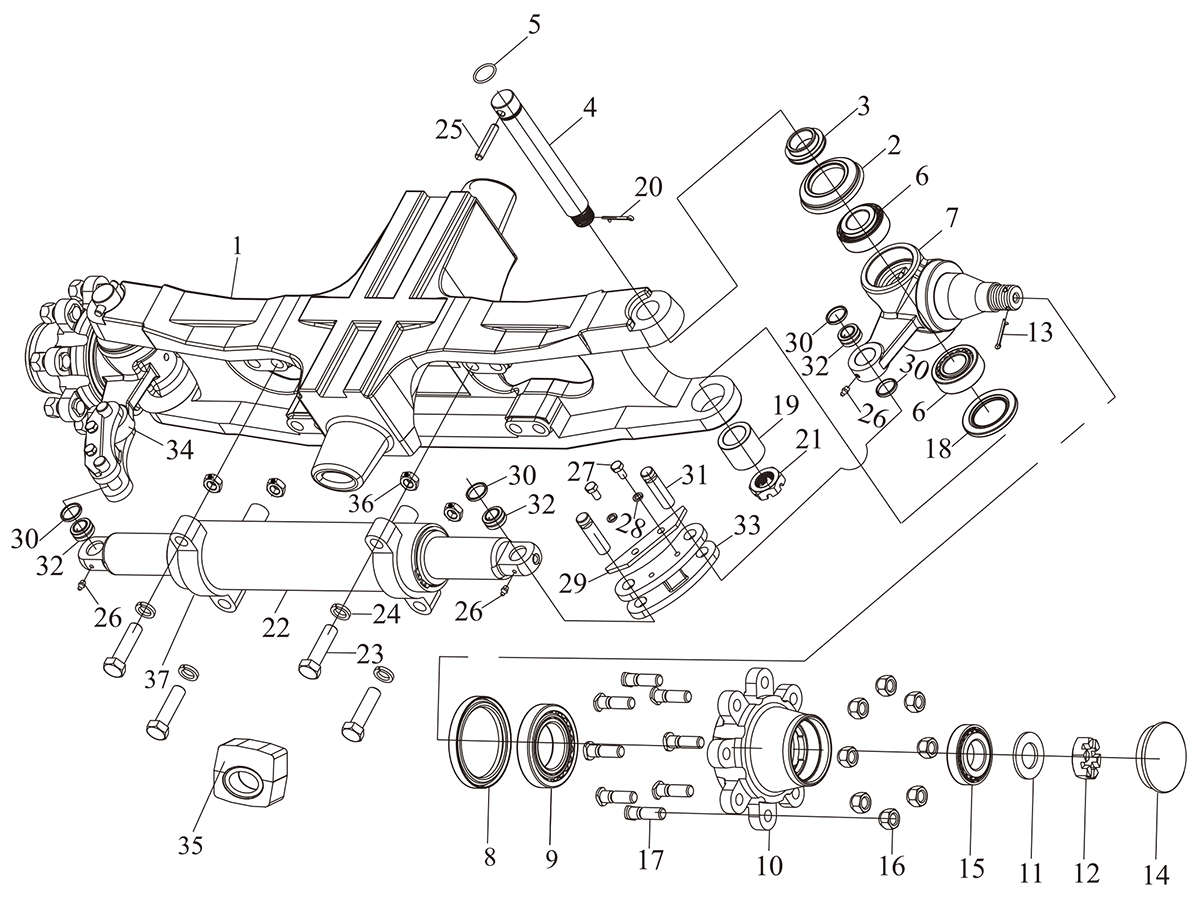

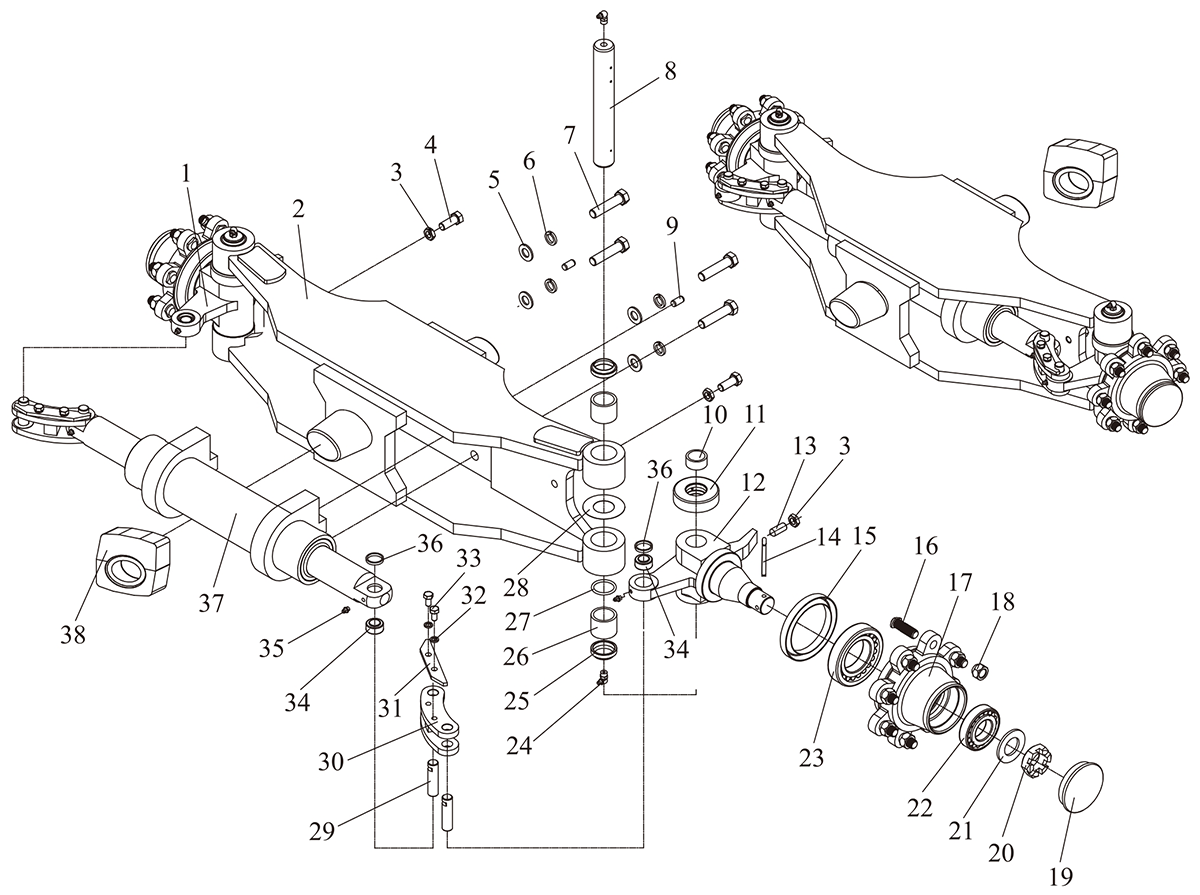

l

A30A6-10610

Axle ass'y

l

2

A30A6-10601

Dust ring

2

3

A30A6- l 0602

Support sleeve

2

4

A30A6- l 0603

Pin, king

2

5

GB/T1235

30 X 2.5 O-ring

2

6

GB/T297

33206 Bearing

4

7

A30A6- l 0620R

Knuckle R.H. ass'y

1

8

A30A6-l 0604

85 X 110 X 12 Seal, oil

2

9

GB/T297

30211E Bearing

2

10

A30A6-10605

Hub

2

11

GB/T971

30 Washer

2

12

A30A6-l 0606

M30 X 2 Nut

2

13

GB/T92

6.3 X 55 Pin

2

14

A30A6- l 0607

Cap

2

15

GB/T297

30207 Bearing

2

16

A30A6- l 0608

Nut

16

17

A30A6-10609

Bolt

16

18

A30A6- l 0611

Seal, oil

26

19

A30A6-10612

Support sleeve

2

20

GB/T92

3. 2 X 45 Pin

2

21

A30A6-10613

M24 X 1. 5 Nut

2

22

A30A6-10630

Cylinder

1

23

GB/T5783

M16 X 45 Bolt

4

24

GB/T93

16 Washer, lock

4

25

A30A6-10614

9. 5 X 56 Pin

2

26

JB/T7940.0

M6 Fitting,grease

4

27

GB/T5783

M8 X 16 Bolt

4

28

GB/T93

Washer, lock

4

29

A30A6-10615

Baffle

30

A30A6-10616

Bushing

4

31

A30A6-10617

Link pin

4

32

A30A6-10618

Bearing

4

33

A30A6-10619

Linkage

2

34

A30A6-10620L

Knuckle L. H. ass'y

1

35

A30A6-10001

Rubber

2

36

GB/T889.l

Ml 6Nut

4

1

A30A6-l 0301

Rim outside

2

2

A30A6- l 0302

Rim inside

2

3

GB/T2982

50 X 10-10PR Tire

2

4

A30A6-10006

Bolt

16

5

A30A6- l 0004

Nut

16

6

A30A6- l 0005

Bolt

16

7

GB/T6170

M12 Nut

16
